WFI System

S D AQUA FINE WFI SYSTEMS are used for Generation of High Purity water for pharmaceutical especially for injection. Many years of experience and continuous development has led to all our plants being very user friendly and robust. The plants are built using world class equipment’s and are engineered with highest care to ensure peak performance throughout its life span.

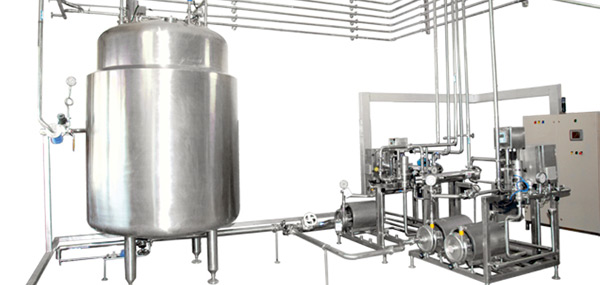

WFI System

Important features of S D AQUA FINE WFI Plants:

• Pre-engineered packaged plants and custom built plants as per URL

• The plants can be either chemical or hot water Sanitisable

• Complete design with low footprint

• Plants manufactured as per ASME, BPE and ISPE Guidelines

Construction features:

These plants are manufactured according to cGMP std. All equipments and plants are manufactured using sanitary AISI 316 L Stainless steel electro polished tubes and fittings with surface finish of Ra < 0.4 um. All piping and fittings are welded using latest Orbital welding machines.

Automation:

S D AQUA FINE WFI plants are PLC based fully automatic and have necessary safety interlocks, data logging facility and intuitive software for smart control and monitoring of the system. The pumps can be provided with variable frequency drives (VFD) on request. Various instruments like flow, pressure transmitters, conductivity, pH and ORP analyzers continuously monitor the plant performance and the data is logged for easy review and study..

Documentation:

S D AQUA FINE's WFI plant is provided with documentation backed with necessary test and calibration certificates with full NABL traceability. For pharmaceutical and biotechnology industry. the documentation is done to ensure proper regulatory compliance. (DQ, FAT, IQ, OQ, and PQ).

The documentation package is well designed and organized to provide validated information on the Project life cycle from design stage to site to acceptance test. Our dedicated Validation Team provides a comprehensive Validation Support to the customer including Validation Protocol preparation, Site Tests activities, Instrumentation Calibration and Validation Reports organization.

Outstanding Features:

• The plant is completely made with SS 316L stainless steel with active surfaces being electro polished.

• The insulation is made of glass wool covered by AISI 304 stainless steel sheet.

• All contact parts to WFI are electro polished with state-of-the- art technology.

• All pipes and tubes as per ASME BPE stamping with less than 0.4 Ra.

• The frame (non contact parts) is made of AISI 304 stainless steel.

• The piping system is manufactured with electro polished pipes being orbital welded with sanitary fittings and pharmaceutical-grade gaskets.

• Expansion joint design for tube-to-tube sheet joints.

• Two specially designed top coolers as per CGMP.

• PLC based operation with all required inter locks and validated logic with skid mounted AISI 304 stainless steel control panel.

• Complete documentation to serve international audit requirements.
